Materiales de impresión 3D
Photocentric manufacture a range of functional resins for a wide variety of applications.
We are a vertically integrated chemical manufacturer, reacting hundreds of tonnes of polymers through to formulating resins.
Materiales de impresión 3D
Photocentric manufacture a range of functional resins for a wide variety of applications.
We are a vertically integrated chemical manufacturer, reacting hundreds of tonnes of polymers through to formulating resins.

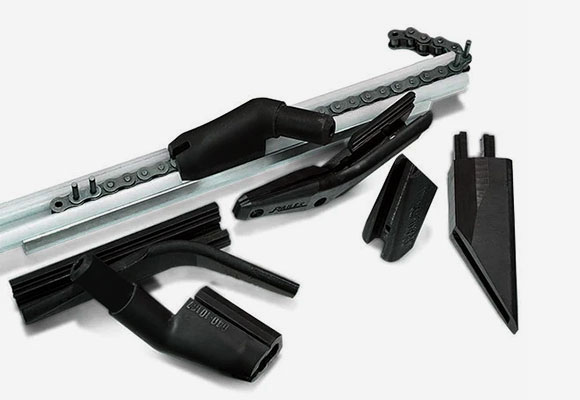

Duradero DL110H
Impact and compression resistant grade that allows some bending and stress fatigue without breaking or deforming.
Aplicaciones
Jigs and fixtures requiring minimal deflection at elevated temperatures, cover plates and enclosures, fastenings, tools and couplings, strong and stiff prototypes, props.
Impresoras compatibles
5kg from
£300.00 sin iva
Volume discounts available

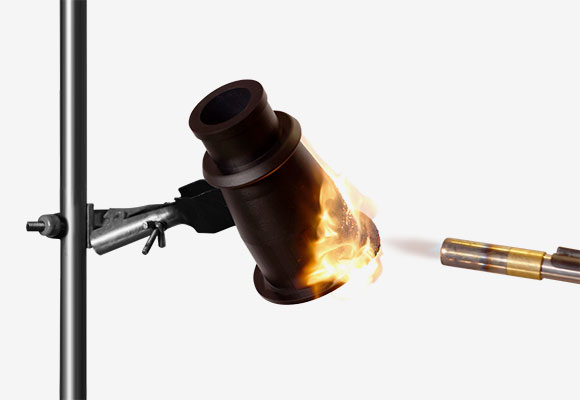

DLFR rÃgido
Rigid DLFR has UL 94 V-0 certification, even showing self-extinguishing properties in the green state. It exhibits exceptionally high HDT and high tensile modulus.
Aplicaciones
Any application requiring durable rigid flame-retardant properties, for instance electrical enclosures and connectors, high power electrical appliances and battery housings.
Impresoras compatibles
5kg from
£252.45 - £375.00 sin iva
Volume discounts available
UVFR rÃgido
Rigid UVFR has UL 94 V-0 certification, even showing self-extinguishing properties in the green state. It exhibits exceptionally high HDT and high tensile modulus.
Aplicaciones
Any application requiring durable rigid flame-retardant properties, for instance electrical enclosures and connectors, high power electrical appliances and battery housings.
Impresoras compatibles
1kg from
£50.49 - £75.00 sin iva
Volume discounts available

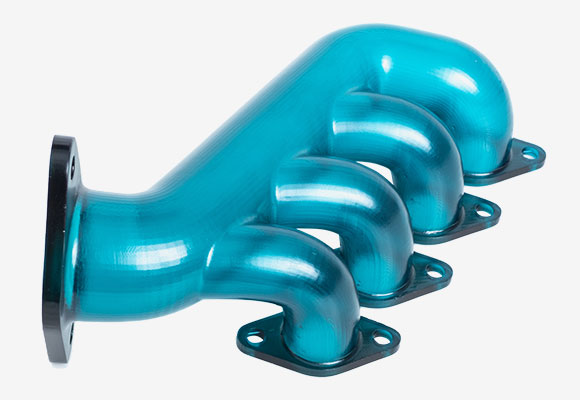

Alta temperatura DL401
Rigid, high temperature material possessing high
stiffness and ductility.
Aplicaciones
Hot fluid and gas manifolds, moulds and inserts, heat resistant housings and fixtures
Impresoras compatibles
5kg from
£252.45 - £375.00 sin iva
Volume discounts available
DL400 de alta temperatura
Extremely high operating temperatures of up to 230°C without bending or deforming, simulating the properties of glass filled Nylon 6.
Aplicaciones
Hot fluid and gas manifolds, moulds and inserts, heat resistant housings and fixtures.
Impresoras compatibles
5kg from
£252.45 - £375.00 sin iva
Volume discounts available

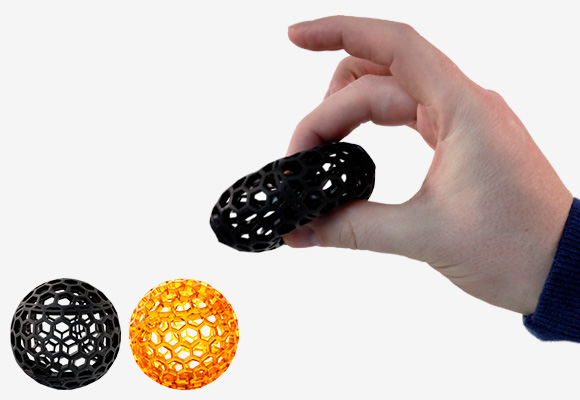

Elastic DL160
High energy dampening at room and even low temperatures (-25 °C) with rebound resilience of 10%, 90% of energy is absorbed.
Aplicaciones
Sportswear protection and helmets, cold temperature flexibility, dampening rubbers and foams, gaskets and seals
Impresoras compatibles
5kg from
£375.00 sin iva
Volume discounts available

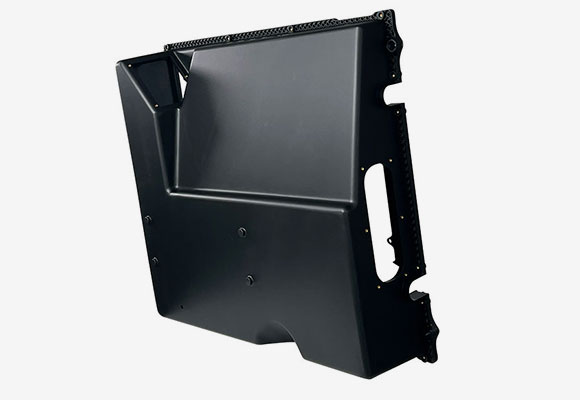

Magna Hard
Very high green strength and low shrinkage make this a reliable grade for printing. Cured parts exhibit extreme hardness with little compression under force.
Aplicaciones
Functional end use and prototype parts.
Impresoras compatibles
5kg from
£168.30 - £250.00 sin iva
Volume discounts available

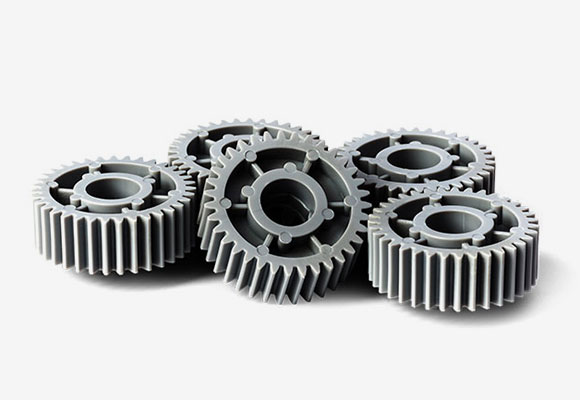

High Tensile UV
Ideal for making objects with a high tensile strength and hardness that cannot be bent or compressed easily..
Aplicaciones
Prototyping and functional engineering
Impresoras compatibles
1kg from
£33.66 - £50.00 sin iva
Volume discounts available
RÃgido DL240 Base vegetal
Rigid tough material with over 50% plant based raw materials, offering a substantial reduction in embedded Carbon.
Aplicaciones
Fast prototyping, accurate parts, dental models for aligner manufacturing.
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available

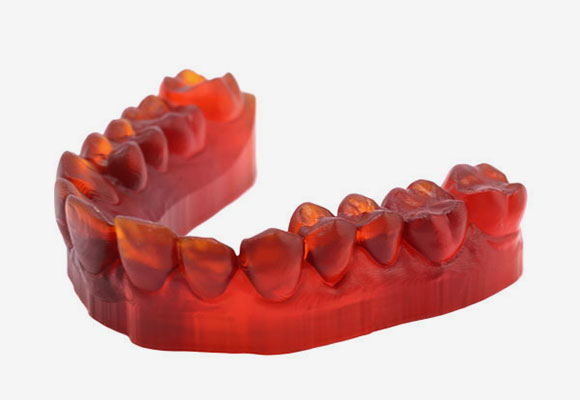

RÃgido UV240 Base vegetal
Rigid tough material with over 50% plant based raw materials, offering a substantial reduction in embedded Carbon.
Aplicaciones
Fast prototyping, accurate parts, dental models for aligner manufacturing.
Impresoras compatibles
1kg from
£40.39 - £60.00 sin iva
Volume discounts available
UV80 duradero
Tough, functional parts that are durable, long-lasting and have high impact strength.
Aplicaciones
Jigs and fixtures, cover plates and enclosures and end-use parts.
Impresoras compatibles
1kg from
£50.49 - £75.00 sin iva
Volume discounts available

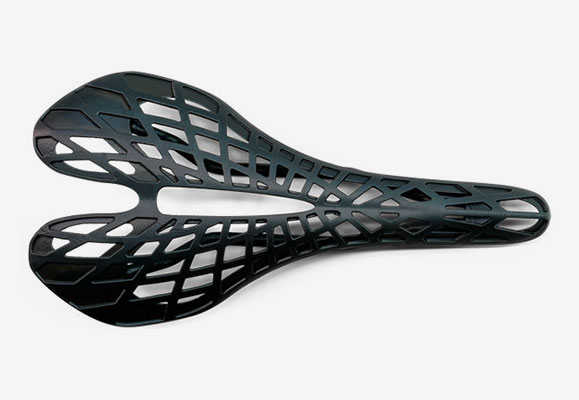

Magna Duramax
Functional durable parts with high impact strength.
Aplicaciones
Jigs and fixtures requiring minimal deflection, cover plates and enclosures, fastenings, tools and couplings.
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available
UV Basics
La primera elección para una impresión precisa y de bajo coste. La nula irritación y el bajo olor hacen que la impresión y el posprocesamiento sean más seguros y sencillos.
Aplicaciones
End use, fast prototyping and accurate models
Impresoras compatibles
1kg from
£19.99 sin iva
Flexible DL220B
Combines impact absorption, high elongation, efficient energy damping, good tear strength and very low water absorption
Aplicaciones
Sport protection helmets, shock absorption, phone cases, cushioning
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available
Ultracur3D® EPD1006
Functional parts capable of movement and flexibility without breaking.
Aplicaciones
Functional engineering parts and prototyping
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available
Ultracur3D® EPD1086
Multi-purpose grade with balanced mechanical properties.
Aplicaciones
Engineering and prototype parts
Impresoras compatibles
5kg from
£168.30 - £250.00 sin iva
Volume discounts available

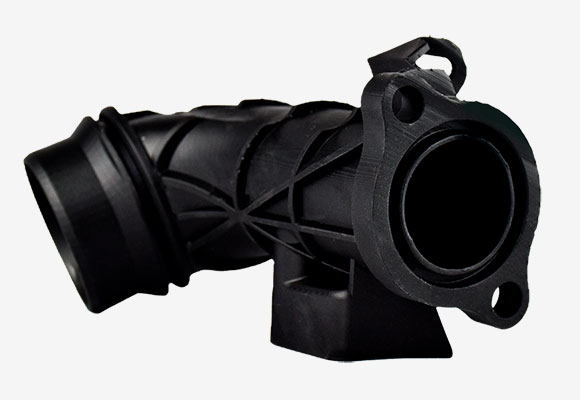

Ultracur3D® EPD2006
Material rÃgido, duradero y de larga duración que ofrece los mejores detalles posibles.
Aplicaciones
Engineering and prototyping parts requiring resilience with some compression
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available

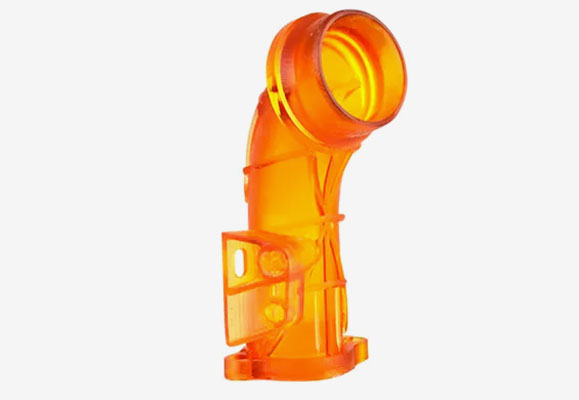

Ultracur3D® EPD3500
Resina de luz diurna fuerte y translúcida con una resistencia y rigidez superiores.
Aplicaciones
Functional engineering parts and prototyping
Impresoras compatibles
5kg from
£252.45 - £375.00 sin iva
Volume discounts available

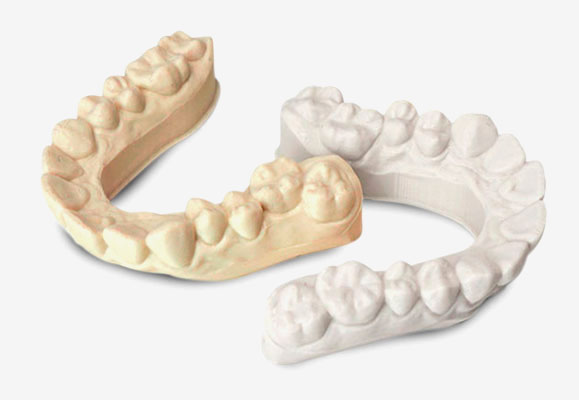

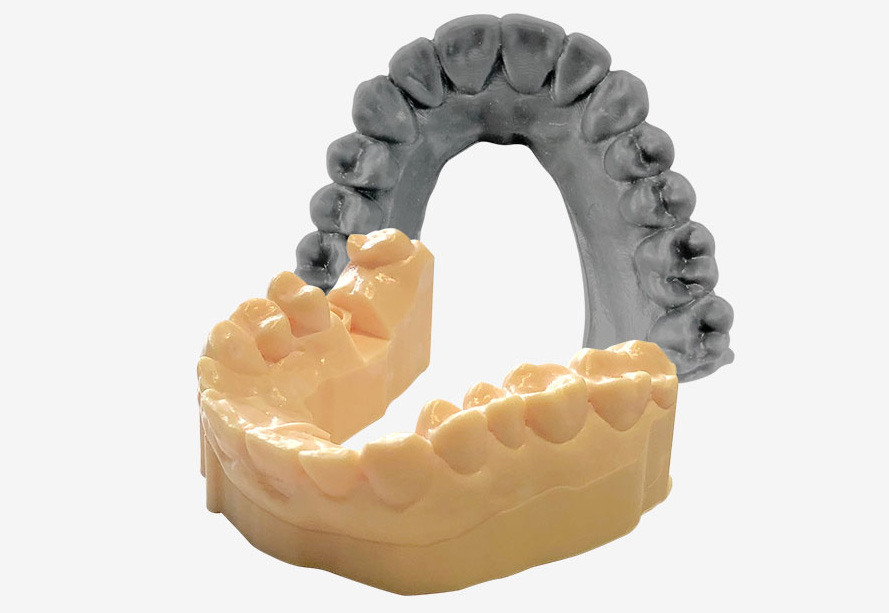

Magna Dental Model
Creates highly accurate, high-resolution models ideal for thermoforming orthodontic models for aligner manufacture.
Aplicaciones
Orthodontic models
Impresoras compatibles
5kg from
£300.00 sin iva
Volume discounts available
Dental Model UV
Creates highly accurate, high-resolution models ideal for thermoforming orthodontic models for aligner manufacture.
Aplicaciones
Orthodontic models
Impresoras compatibles
1kg & 5kg from
£60.00 - £300.00 sin iva
Volume discounts available
Proyecto Magna
Nuestra resina de impresión más rápida, comparable a la acrÃlica y las poliamidas.
Aplicaciones
Prototipos rápidos
Impresoras compatibles
5kg from
£201.95 - £300.00 sin iva
Volume discounts available
Flexible UV160
Highly elastic stiff 3D resin with an 86A shore hardness suitable for end user functional parts, presenting TPU properties.
Aplicaciones
Seals, gaskets, grips and handles, cushioning, footwear
Impresoras compatibles
1kg from
£50.49 - £75.00 sin iva
Volume discounts available
Hard UV
Very high green strength and low shrinkage make this a reliable grade for printing. Cured parts exhibit extreme hardness with little compression under force.
Aplicaciones
Functional parts, prototypes, compression-resisting parts
Impresoras compatibles
1 kg.
£27.50 - £50.00 sin iva
Volume discounts available

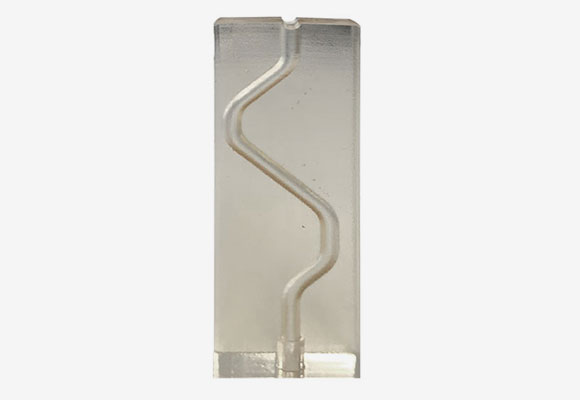

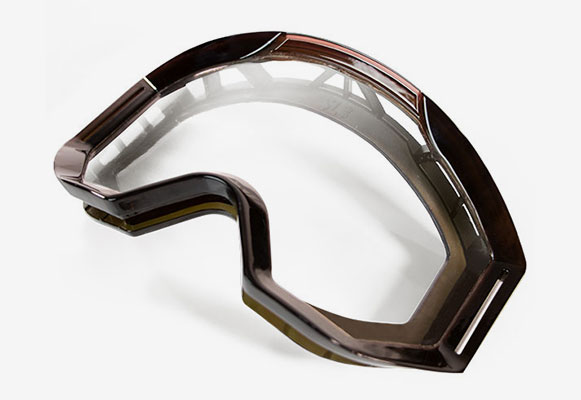

Durable UV SuperClear
Ideal for making clear, strong objects with only minimal shrinkage. Durable UV SuperClear has been specifically developed to allow the fabrication of extremely clear objects.
Aplicaciones
Clear and durable models, end user parts like push fits, fluidics and microfluidics
Impresoras compatibles
1 kg.
£40.39 - £60.00 sin iva
Photocentric Limpiador de resina 30
Photocentric Resin Cleaner 30 has been optimally formulated to remove photopolymer resin, rapidly cleaning even the most intricate, detailed parts. It reduces post curing times and leaves parts shiny and dry to touch.
£66.50 - £252.20 sin iva
5L & 20L available
Left part washed with IPA vs right part washed with resin cleaner
DL110H – Material Properties
2100 MPa
Tensile Modulus – ASTM D638
86 Orilla D
Hardness – ASTM D2240
54 MPa
Ultimate Tensile Strength – ASTM D638
75°C
Heat Deflection Temperature – ASTM D648
28%
Elongation at break – ASTM D638
0.62%
Water Absorption (Short Term) – 1 x 1 x 1 cm3 cube
1950 MPa
Flexural Modulus – ASTM D790
480 cPs
Viscosity – At 25°C Brookfield spindle 3
78 MPa
Flexural Strength – ASTM D790
1,14 g/cm3
Densidad
110 J/m
Impact Strength Notched Izod – ASTM D256
10<T<50°C
Almacenamiento
Las propiedades mecánicas indicadas se basan en material totalmente curado.
Colours:
 Negro
 Translucent
High Temp DL401 – Material Properties
3180 MPa
Tensile Modulus – ASTM D638
3.5
Relative Permittivity, 20°C
77 MPa
Ultimate Tensile Strength – ASTM D638
4.05
Relative Permittivity, 100°C
4.8%
Elongation at break – ASTM D638
30 x 10-3
Dielectric Loss Factor, 20°C
3240 MPa
Flexural Modulus – ASTM D790
31 x 10-3
Dielectric Loss Factor, 100°C
123 MPa
Flexural Strength – ASTM D790
92 D
Hardness – ASTM D2240
16 J/m
Impact Strength Notched Izod – ASTM D256
270°C
Heat Deflection Temperature – ASTM D648 (0.45 MPa)
0.20 W/(m.K)
Thermal Conductivity, 23°C – ASTM D7984
0.28 wt%
Water Absorption (Short Term) – ASTM D570
0.21 W/(m.K)
Thermal Conductivity, 100°C – ASTM D7984
700 cPs
Viscosity – At 25°C Brookfield spindle 3
1.36 J/(g.K)
Specific Heat Capacity, 23°C – ASTM D7984
1,1 g/cm3
Densidad
1.69 J/(g.K)
Specific Heat Capacity, 100°C – ASTM D7984
10<T<50°C
Almacenamiento
Mechanical properties stated based on fully cured material. Post cured for 2hrs at 60°C in Cure L2 or Cure XL
Colours:
 Translucent Elastic DL160A – Material Properties
13 MPa
Tensile Modulus – ASTM D412
70 Shore A
Hardness – ASTM D2240
12 MPa
Tensile Strength (Break) – ASTM D412
-24 °C
Tg (DSC, S1 –57, S2 8)
2 MPa
Tensile strength @ 50% Elongation – ASTM D412
0.34%
Water absorption (%)* after 24 hrs – ASTM D570
4 MPa
Tensile strength @ 100% Elongation- ASTM D412
0.38%
Water absorption (%)* after 72 hrs – ASTM D570
162%
Elongation at Break – ASTM D412
0.56%
Water absorption (%)* after 7 days – ASTM D570
20 kN/m
Tear Strength – ASTM 624
1100 cPs
Viscosity – At 25°C Brookfield spindle 3
10%
Rebound Resilience – ASTM D7121
1.04 g/cm3
Densidad
10<T<
Almacenamiento
Post cured for 2 hours at 60°C with Photocentric Cure L2
Colours:
 Translucent
Elastic DL160B – Material Properties
19,5 MPa
Tensile Modulus – ASTM D412
74 Shore A
Hardness – ASTM D2240
12 MPa
Tensile Strength (Break) – ASTM D412
-24 °C
Tg (DSC, S1 –57, S2 8)
2.5 MPa
Tensile strength @ 50% Elongation – ASTM D412
0.29%
Water absorption (%)* after 24 hrs – ASTM D570
18 MPa
Tensile strength @ 100% Elongation- ASTM D412
0.38%
Water absorption (%)* after 72 hrs – ASTM D570
162%
Elongation at Break – ASTM D412
0.56%
Water absorption (%)* after 7 days – ASTM D570
1100 cPs
Viscosity – At 25°C Brookfield spindle 3
20 kN/m
Tear Strength – ASTM 624
10%
Rebound Resilience – ASTM D7121
1.04 g/cm3
Densidad
10<T<
Almacenamiento
Post cured for 2 hours at 60°C with Photocentric Cure L2
Colours:
 NegroFichas técnicas y de seguridad
Seleccione su resina e idioma
Our 3D resins are compliant with REACH, SVHC and RoHS
