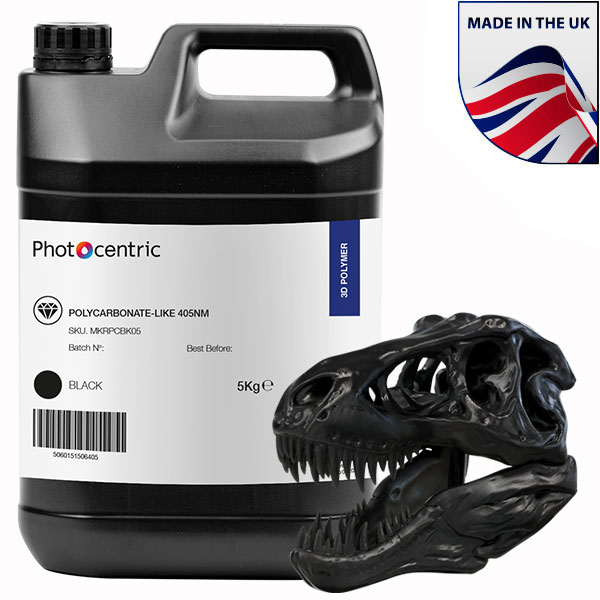

Polycarbonate-like 3D Resin

(6 customer reviews)

$121.50 excl vat

Select currency

FREE UK shipping on orders over £250

Photocentric’s Polycarbonate-like, 405nm resin is the first choice for low-cost, accurate printing. The low-irritancy and low odour make printing and post- processing safer and easier, while printed parts exhibit the precision and strength of conventional hard plastics. Photocentric’s Polycarbonate-like, 405nm works with a variety of UV LCD and DLP 3D printers.

×
Total:
SKU: N/A Categories: , , , , ,

Looking for a smaller bottle?

Polycarbonate-like is available in 1kg bottles as part of our consumer focused product brand, Maker.

Optimised for:

• Accurate models
• Suitable for end use
• Fast prototyping and model making
• Fastenings, tools and couplings

Compatible Printers:

UV DLP and UV LCD Printers such as LC Opus, MoonRay, Asiga, Envisontec, Flashforge, Anycubic, Wanhao, Phrozen, Sparkmaker, Kudo Bean and more.

Properties

Polycarbonate-like 405nm

Tensile Properties
Tensile Modulus *
Ultimate Tensile Strength *
Elongation at break *

2330 MPa

58 MPa

6%

ASTM D638
ASTM D638
ASTM D638
Flexural Properties
Flexural Strength *
Flexural Modulus *

87 MPa

2190 MPa

ASTM D790
ASTM D790
Impact Properties
Impact Strength Notched Izod *

43 J/m

ASTM D256

General Properties
Hardness *
Heat Deflection Temperature *

Water absorption (%)* after 24 hrs

Water absorption (%)* after 72 hrs

Water absorption (%)* after 7 days

Viscosity
Density
Storage
Colour

87 Shore D

110 °C

0.1%

0.4%

0.6%

740 cPs

1.10 g/cm3

10<T<50°C

Black

ASTM D2240
ASTM D648

Internal

Internal

Internal

At 25°C Brookfield spindle 3
* Mechanical properties stated based on fully cured material.

Optimised for:

• Accurate models
• Suitable for end use
• Fast prototyping and model making
• Fastenings, tools and couplings

Compatible Printers:

UV DLP and UV LCD Printers such as LC Opus, MoonRay, Asiga, Envisontec, Flashforge, Anycubic, Wanhao, Phrozen, Sparkmaker, Kudo Bean and more.

Properties

Polycarbonate-like 405nm

Tensile Properties
Tensile Modulus *

2330 MPa

ASTM D638



Ultimate Tensile Strength *

58 MPa

ASTM D638



Elongation at break *

6%

ASTM D638
Flexural Properties
Flexural Strength *

87 MPa

ASTM D790



Flexural Modulus *

2190 MPa

ASTM D790
Impact Properties
Impact Strength Notched Izod *

43 J/m

ASTM D256

General Properties
Hardness *

87 Shore D

ASTM D2240



Heat Deflection Temperature *

110 °C

ASTM D648



Water absorption (%)* after 24 hrs

0.1%

Internal



Water absorption (%)* after 72 hrs

0.4%

Internal



Water absorption (%)* after 7 days

0.6%

Internal



Viscosity

740 cPs

At 25°C Brookfield spindle 3



Density
1.10 g/cm3



Storage

10<T<50°C



Colour
Black



* Mechanical properties stated based on fully cured material.



6 reviews for Polycarbonate-like 3D Resin

  1. Gary C. – Amazon User

    Fantastic resin
    Brilliant high quality resin suitable for any 3D printer. Produced great 3D prints on my Elegoo printer with smooth results and no artifacts. The prints from this resin are also very durable. I like that it is made in the UK – nice to purchase something local for once. The odour isn’t bad, actually better than most resins I’ve tried and the prints feel very rigid and strong.

  2. J J BARLOW – Amazon User

    THIS IS MY NEW GO TO RESIN FOR ALL OFF MY PRINTERS { I OWN AND RUN 4 } NOT ONLY FOR FUN BUT FOR PROTOTYPING

    The end results are a very strong yet very slightly bendable finished article so its far from brittle so for my use at least its the perfect medium weather its at home for my hobby use or for prototyping for clients its superb

    The details it captures are way up there with the most expensive resins with even the minutest details being captured

    I have so far used it in a Mars 4 and 5 and in an anycubic 11 inch printer and all printers where set with the following perimeters giving superb results with not a single fail after 18 small prints from 1 inch tall to 10 inches tall
    UV SET AT 80 PERCENT
    ON TIME 3 SECONDS
    6 BOTTOM LAYERS SET AT 50 SECONDS EACH
    And one thing i have noticed IS ITS LITERALLY IN THE IPA FOR LESS THAN A MINUTE AND ITS SPOTLESS CLEAN AND BARELLY NEEDS A UV LIGHT BUT I DID BUT ONLY FOR 2 MINUTES

    It really is the best all round resin that I have ever used in 7 years off resin printing and I WILL DEFFINATLY BE BUYING FAR MORE
    VERY VERY HIGHLY RECOMENDED

  3. The Smart Dog – Amazon User

    I ordered this resin to try as I’m always looking for the holy grail of resins. Different resins have different properties and you need to way up the pros and cons or each.

    We have high detail, fast cure, ABS, and some resins have a little flex in them but can be susceptible to shrinking and so on.

    This is the new Maker polycarbonate resin which is meant to be super tough with almost no shrinkage so it should be great for prints that have a job to do.

    Personally 3D printing is purely a hobby and I print minitures and models but that does not mean they dont need to be strong.
    I wargame on a tabletop with mine and they get knocked about alot and although I would love to just use the super high detail resins they are not always strong enough because they are brittle, so I usually use ABS-like which really works for me.
    The data sheet on this resin does state almost no shrinkage though so I decided to give it a try as printing mutipart models can be a pain and I hate filling the gaps the finish suffers.

    Firstly, I use a Elegoo saturn 4 16k with the heated resin vat so all temps were perfect at 30c, secondly I did a full exposure test to see how low I could get the exposure time down to.
    This is important to me as the advised 7 to 8 second recommended time worried me as I like to be able to crack figures off fast, its why I bought one of the fastest printers on the market.

    My usual print layer time is 2.6 to 2.8 secs on ABS-like, with this polycarbonate I have found it really does need a minimum of 4.5secs but better at 5secs, so each print is taking twice as long.

    So is it worth the extra time ?
    The best answer I can give is yes, but for specific things.

    The detail on models is pin sharp. They feel good in the hand and take paint well.

    I do feel they may be quite a bit stronger than ABS-like resins. Time is the issue though for me, but I will keep a bottle in as it does have its uses.

    Overall this is a great product and a good solution to some challenges in printing.
    I would happily recommend it to the community and in my opinion it’s fairly priced.

    I hope you find my experiences helpful.

  4. Hackinside – Amazon User

    This Photocentric polycarbonate-like resin is truly a fantastic product. It produces prints that are not only really sturdy but also have a high level of detail that looks incredible.

    Now, it’s important to note that its exposure time is quite a bit higher than a standard or ABS-like resin. The manufacturer’s website confirms this, with a range of 3.4 to 10 seconds per layer. On my Elegoo Saturn 4 Ultra, I found that dialling in 3.5 seconds for each layer and 35 seconds for the bottom layer gave excellent results. The longer print time is a small price to pay for the superior strength and detail you get.

    For the high quality of the prints and the durability of the final models, it offers good value for the money. If you’re looking for a resin that can handle demanding projects and produce robust parts, this one is an excellent choice. Highly recommended!

  5. PaulH – Amazon User

    Decent resin which has worked well on a small test print on my cheap Geetech printer. Picked up the details nicely and seems pretty sturdy.

    For me handling is the pain with resin and this stuff seems to pour well which is a big plus and it doesn’t smell too bad so I like it!

  6. DMG – Amazon User

    Pros
    Excellent Detail
    Odour isn’t as bad as some resins
    Not as brittle as some
    Prints well at default settings
    Tested on Saturn Ultra 16k, no issues
