UV Materials

Making plastic with ultraviolet

Select your printer type below

UV LC Dental

UV DLP

UV Laser

UV LCD

UV 355

UV LCD

Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean

Resin Types:

Firm, Flexible, Hard

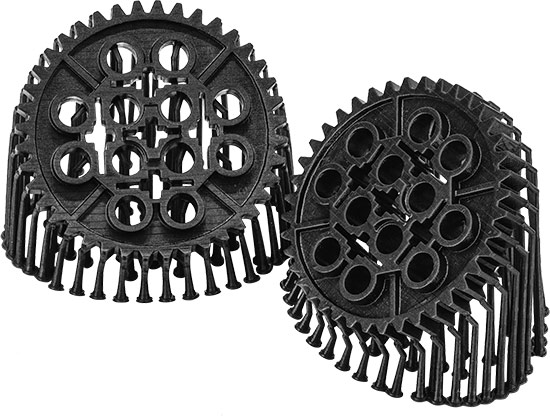

UV LCD Firm

Our UV LCD Firm resin creates parts that hold their shape while also being able to bend and flex slightly without snapping. Resin delivers mechanical properties similar to polypropylene.

Key Features:

  • Pliable
  • Quick curing
  • High accuracy

Industry:

General

Compatible Printers:

Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean

Available in 1kg bottles

£55 | €66 | $77

Resin Properties

Score out of 100 when compared to other resins from our range

Hover over the properties to understand their meaning.

Tensile Strength

26 MPa

Elongation

60%

Young's Modulus

700 MPa

Accuracy

UV LCD Flexible

Our UV LCD Flexible resin produces soft, flexible parts. Objects can be stretched without snapping or breaking. Lattice or hollow structures can be squashed and will return to their original shape afterwards.

Key Features:

  • Flexibility
  • Easy to print
  • Smooth surface finish

Industry:

Prototyping

Compatible Printers:

Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean

Available in 1kg bottles

£55 | €66 | $77

Resin Properties

Score out of 100 when compared to other resins from our range

Hover over the properties to understand their meaning.

Tensile Strength

4.9 MPa

Elongation

60%

Accuracy

UV LCD Hard

Our UV LCD hard resin delivers crisp details, high stiffness and high hardness. Parts will not deform when pressure is applied.

Key Features:

  • Durable
  • Rigid and strong
  • High print accuracy

Industry:

Prototyping, Engineering

Compatible Printers:

Compatible with UV LCD printers such as Anycubic Photon, Wanhao D7, Phrozen Shuffle, Sparkmaker, Kudo Bean

Available in 1kg bottles

£55 | €66 | $77

Resin Properties

Score out of 100 when compared to other resins from our range

Hover over the properties to understand their meaning.

Tensile Strength

35 MPa

Elongation

<1.5%

Young’s Modulus

2000 MPa

Accuracy

Materials Comparison

Score out of 100 when compared to other resins from our range

Resin

Tensile Strength

Elongation

Young’s Modulus

Accuracy

UV LCD Firm

UV LCD Flexible

UV LCD Hard

Glossary of Key Terms

Tensile strength: Ability for an object to withstand pulling (tensile) force. Measured in units of force per cross-sectional area.

% elongation: How much an object can be stretched from its original shape.

Young’s Modulus: How much force is needed to stretch an object.

Flexural Strength: Ability to resist deformation under load.

Flexural Modulus: Measurement of an objects resistance to bend when force is applied (bend modulus).

HDT: Temperature at which a plastic deforms under heat.



Slide For support and guidelines on using our Photocentric UV resins on your UV printer please check out our UV support page. Here you’ll find recommended print parameters for UV laser, DLP and LCD Support Support
